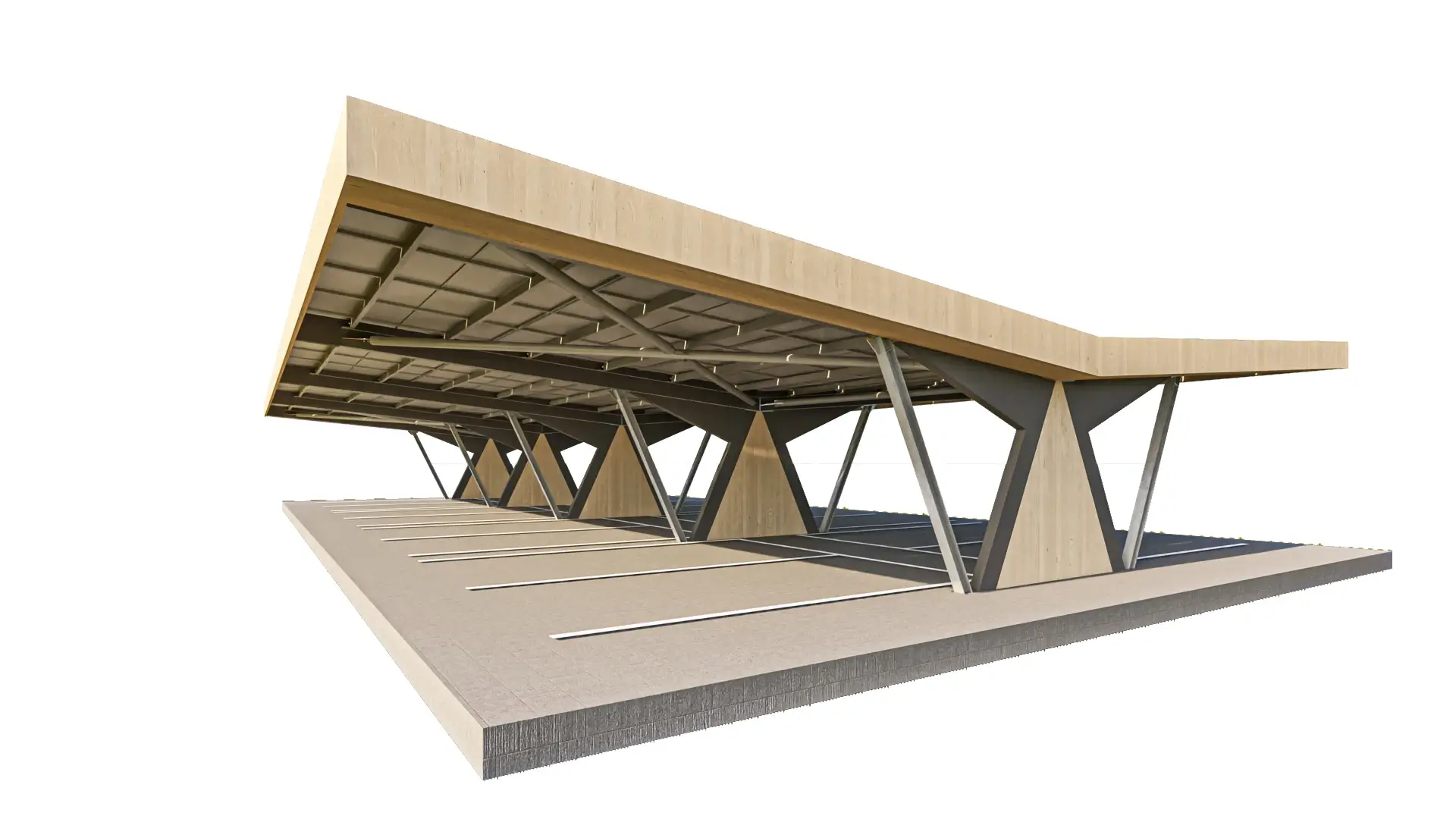

DOUBLE-ROW
W TYPE

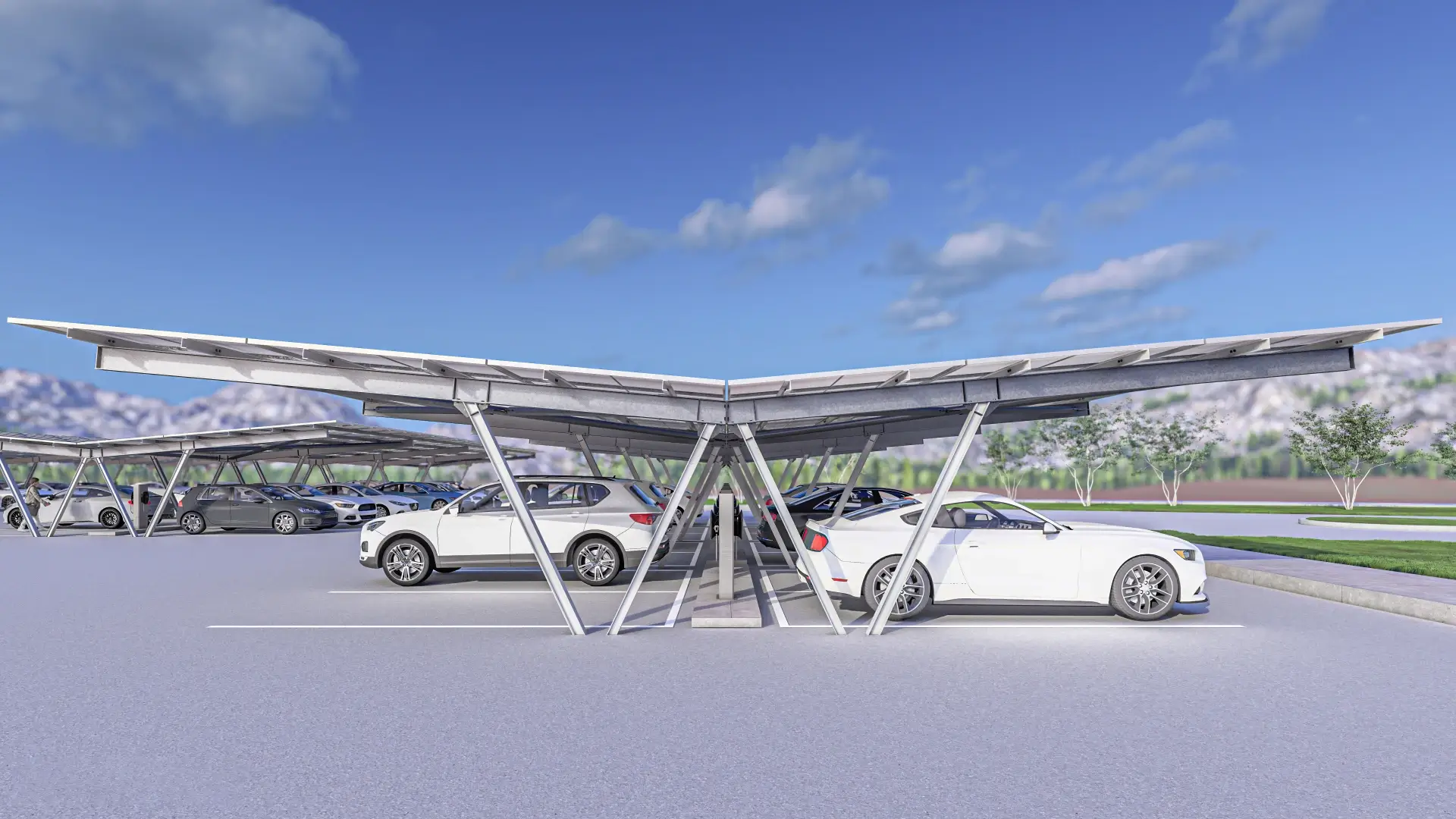

Double Row solar carport model having two columns providing greater strength and less load on the ground.
All the design, fabrication, delivery and installation are executed by POLARKON.
Technical Specifications
Solar Carport
Steel Structures
Material Types | S235, S275 or S355 |
Unit Area/Parking Space | 19.02 m² |
Column Heights | 3.6m |
Distance Between Columns | 5.60m |
Roof Projected Length | 12.90m |
Solar Carport
Photovoltaics
Connection Type | On-Grid, Off-Grid |
Power Generation/m² | 225 W/m² |
Power Generation/Parking Space | 4.40 kWp |
PV Module Used | 540 W (2.27m × 1.13m) |
Optional Features
For each solar carport project, POLARKON executes the structural and architectural design, shop-drawings, fabrication and transportation of material and installation services at site. For any client-specific project inquiry, POLARKON offers comprehensive design and architecture services in order to comply with its clients requirements and specific demands.
Client-Specific Designs
POLARKON offers various geometries and architectural designs which are requested by each of its clients and customers to be integrated into their plots and estates.
Galvanization & Paint
POLARKON offers hot-dip galvanization as a coating and protection against corrosion, rust, heavy rain, snow and other external weather conditions, as well as any color option from the RAL-color scale.
Water Management
POLARKON is also capable of designing and implementing waterproof roofing structures with the help of drainage pipes and alternative waterproof roof designs.
Foundations & Ground Works
POLARKON is able to offer different variations for the applications of foundations for its solar carports, where reinforced concrete or screw piling alternatives are designed and applied for each project with different locations.
Reinforced Concrete
Reinforced concrete foundations provide the necessary strength, durability, and adaptability to ensure that solar carports are securely anchored and capable of withstanding various stresses, making them a reliable and long-lasting solution for supporting solar energy infrastructure.
Strength and Stability
Durability
Adaptability
Corrosion Resistance
Foundation Screw Pilings
The screw piling foundation method offers a fast, adaptable, and environmentally friendly solution for the foundations of solar carports, ensuring stable and secure support in a wide range of soil conditions and minimizing construction impact.
Quick Installation
Minimum Site Disruption
Versatility in Site Conditions
Adjustability
Load Bearing Capacity
Additional Content of W TYPE
Discover all of our Solar Carport models and feel free to customize them to your liking!
You can find detailed information about all of our models and their technical details in our website and brochure.
